合金異型半成品加工設備系列之
Alloy profiled semi-finished products processingequipment series

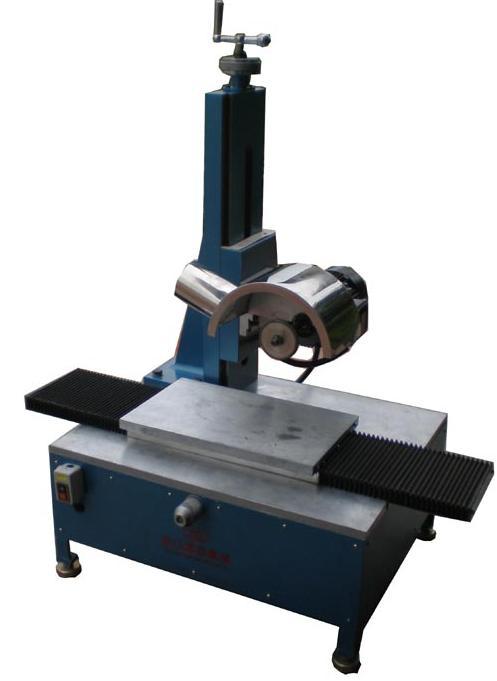

定位開槽機(Positioning slotting machine)
一、主要性能說明(the main performance)
定位開槽機是異型產品加工專用機臺，針對螺絲、螺帽模開槽，也可對V形槽、凸型、凹型45°進行加工，制品裝卸方便快捷，密閉箱式的粉末回收裝置，方便物料的回收減少混合料的發生，粉末可再次回收使用�？梢烙脩�(hù)制品，設計開發出不同形狀的設備。
Thepositioning slot machineisaspecial machine formachining special-shaped products, screw, nut die slot,but also on the V slot, convex, concave 45 ° processing,product assembly and disassembly is convenient and rapid, powderrecovery device for closed box, convenient recycling materials to reduce the occurrence of powdermixture, recycling again. According to the user product,design and develop the equipment of different shapes.

二、主要技術參數(the main technical parameters)
品號articlenumber：YC2101
磨輪精度Precision grinding wheel：±0.1mm
加工精度控制點Machining accuracyControl point：0.02mm
左右行程About the itinerary：400mm
上下行程O(píng)n the down stroke：500mm
前后行程before and after stroke：100mm
電機功率power of motor ：1.5KW
吸塵器功率Vacuumcleaner power：0.4kw
外形尺寸outline dimension：1200*750*1400mm
工作平臺foot platform ：300*500mm
　
