快速入蠟(膠)干燥混合攪拌機
產品型號:YC101
參考價格:-
產地:廈門
發布時間:2015-1-31 8:10:59
在線咨詢
產品介紹:

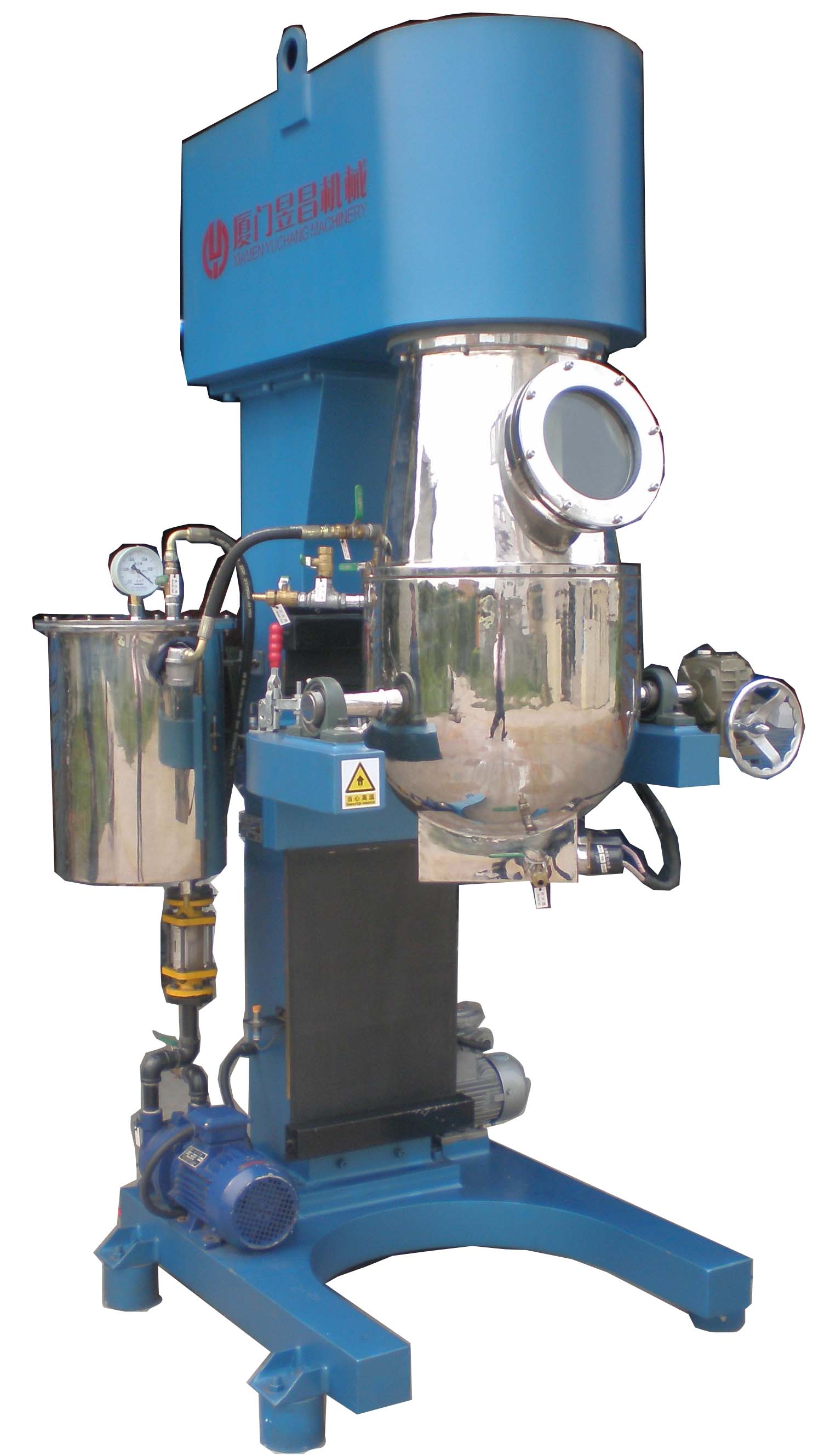

快速干燥入蠟(膠)混合攪拌機
Fast drying into the wax (GUM) mixer
本機為入蠟、混合、攪拌、干燥用設備,可以廣泛應用于化工、醫藥、食品、橡塑以及粉末冶金等行業This machine is in the wax, mixing, stirring, drying equipment, can be widely used in chemical, pharmaceutical, food, plastics and powder metallurgy industry。
一、主要性能說明(The main performance specification):
獨特的攪拌桿和刮壁刀的設計,配合緊湊,攪拌均勻,不易凝料、粘料、結塊、氧化,不成團(The design is unique, the stirring rod and scraping the wall knife with a compact, stirring evenly, not easy to aggregate, binder, caking, oxidation, not a group)。
桶料可獨立上升、下降,裝卸料簡單方便,采用雙保護功能的設計,確保機器設備與人員的安全(barrel material can be independently rise, fall, loading and unloading is simple and convenient, the design features of the double protection, ensure equipment and the safety of personnel)。
特別設計的加熱冷卻裝置,使入蠟,混合,攪拌,干燥,冷卻五步一體,將傳統的幾道工序結合為一體,既節約了生產成本又降低了勞動強度(Heating and cooling device is specially designed, so that the wax, mixing, stirring, drying, cooling the five step, the procedure of traditional combined into one, not only save production cost and reduce labor intensity)。
裝有數顯累時器可對攪拌時間進行累加,也可設置攪拌時間,累加時間到了自動停止攪拌(It is equipped with a digital accumulator can be accumulated on the mixing time, can also be provided with stirring time, accumulated time to automatically stop stirring)。
可依客戶要求設計帶抽真空或帶真空泵(can according to customer request design with vacuum or vacuum pump)。
可依客戶要求設計帶冰水循環系統,可配工業冰水機(can according to customer request design with ice water circulation system, can be equipped with industrial chiller)。
可依客戶要求設計帶酒精回收系統(can according to customer request design with alcohol recovery system)。
可依客戶要求設計帶變頻調速(can according to customer request design with variable frequency speed regulation)。
可依客戶要求設計用雙槳攪拌桿(according to customer requirements designed by twin-screw stirring rod)。
二、主要技術參數(Main technical parameters):
品號規格Product specifications:YC1011-30L;
額定功率power rating :4.5kw;
額定電壓rated voltage 380v;
攪拌桿轉速rabble :30r/min;
外形尺寸 outline dimension :1000*900*2050
備注Note:不帶真空Without vacuum;
品號規格Product specifications:YC1012-30L
額定功率power rating :6kw
額定電壓rated voltage 380v
攪拌桿轉速rabble :30r/min
外形尺寸 outline dimension :1000*900*2050
備注Note:帶真空, 溶劑回收系統With vacuum, solvent recovery system
品號規格Product specifications:YC1013-60L
額定功率power rating :8kw
額定電壓rated voltage 380v
攪拌桿轉速rabble :30r/min
外形尺寸 outline dimension :1200*1220*2500
備注Note:不帶真空Without vacuum
品號規格Product specifications:YC1014-60L
額定功率power rating :11kw
額定電壓rated voltage 380v
攪拌桿轉速rabble :30r/min
外形尺寸 outline dimension :1200*1220*2500
備注Note:帶真空,溶劑回收系統With vacuum, solvent recovery system
品號規格Product specifications:YC1015-120L
額定功率power rating :24.3kw
額定電壓rated voltage 380v
攪拌桿轉速rabble :30r/min
外形尺寸 outline dimension :1240*1350*2650
備注Note:不帶真空Without vacuum
品號規格Product specifications:YC1016-120L
額定功率power rating :26.5kw
額定電壓rated voltage 380v
攪拌桿轉速rabble :30r/min
外形尺寸 outline dimension :1240*1350*2650
備注Note:帶真空,溶劑回收系統With vacuum, solvent recovery system
品號規格Product specifications:YC1017-200L
額定功率power rating :30kw
額定電壓rated voltage 380v
攪拌桿轉速rabble :30r/min
外形尺寸 outline dimension :2000*1500*2600
備注Note:帶真空,溶劑回收系統,龍門式With vacuum, solvent recovery system, Longmen
品號規格Product specifications:YC1018-300L
額定功率power rating :34kw
額定電壓rated voltage 380v
攪拌桿轉速rabble :30r/min
外形尺寸 outline dimension :2400*1800*2800
備注Note:帶真空,溶劑回收系統,龍門式With vacuum, solvent recovery system, Longmen
